Aircontrol time of Day API

Time of Day

Aircontrol allow to control sun position. By controlling the sun position Day and night scenarios can be generated.

Python API

Python API has a set_TOD function to set the time of day properties. set_TOD function takes the following arguments: - IsActive (bool, optional): Active if set to True. Internal effective compute mechanism. Defaults to False. - SunLatitude (float, optional): Controls sun Latitude. Defaults to -826.39. - SunLongitude (float, optional): Controls sun Longitude. Defaults to -1605.4. - Hour (int, optional): Set Hour. Defaults to 10. - Minute (int, optional): Set Minutes. Defaults to 5.

Importing Requirement

from pprint import pprint
import PIL.Image as Image
import base64
import numpy as np
from io import BytesIO
from matplotlib.pyplot import  imshow
import matplotlib.pyplot as plt

from airctrl import environment
from airctrl import sample_generator
from airctrl.utils import unity
from airctrl import sample_generator
port=8999
sample = sample_generator.samples()

Use Launch() class from unity subpackage to create and object

env =  environment.Trigger()
L = unity.Launch()

Now call method .get_connected(port=<Default 8053>) to get connected


Use function launch_executable() to launch an environment. launch_executable() takes path where the executable is located. Use suitable path according to OS.

process = L.launch_executable("/home/supatel/Games/AirControl_2021/Build/1.3.0/Linux/v1.3.0-AirControl.x86_64", server_port=port)
env.get_connected(port=port)

Loading environment from /home/supatel/Games/AirControl_2021/Build/1.3.0/Linux/v1.3.0-AirControl.x86_64 at port 8999 client ip 127.0.1.1 client port 8999

['/home/supatel/Games/AirControl_2021/Build/1.3.0/Linux/v1.3.0-AirControl.x86_64', '--serverPort', '8999', '--clientIP', '127.0.1.1', '--clientPort', '8999']
Sleeping for 5 seconds to allow environment load

[UnityMemory] Configuration Parameters - Can be set up in boot.config
    "memorysetup-bucket-allocator-granularity=16"
    "memorysetup-bucket-allocator-bucket-count=8"
    "memorysetup-bucket-allocator-block-size=4194304"
    "memorysetup-bucket-allocator-block-count=1"
    "memorysetup-main-allocator-block-size=16777216"
    "memorysetup-thread-allocator-block-size=16777216"
    "memorysetup-gfx-main-allocator-block-size=16777216"
    "memorysetup-gfx-thread-allocator-block-size=16777216"
    "memorysetup-cache-allocator-block-size=4194304"
    "memorysetup-typetree-allocator-block-size=2097152"
    "memorysetup-profiler-bucket-allocator-granularity=16"
    "memorysetup-profiler-bucket-allocator-bucket-count=8"
    "memorysetup-profiler-bucket-allocator-block-size=4194304"
    "memorysetup-profiler-bucket-allocator-block-count=1"
    "memorysetup-profiler-allocator-block-size=16777216"
    "memorysetup-profiler-editor-allocator-block-size=1048576"
    "memorysetup-temp-allocator-size-main=4194304"
    "memorysetup-job-temp-allocator-block-size=2097152"
    "memorysetup-job-temp-allocator-block-size-background=1048576"
    "memorysetup-job-temp-allocator-reduction-small-platforms=262144"
    "memorysetup-temp-allocator-size-background-worker=32768"
    "memorysetup-temp-allocator-size-job-worker=262144"
    "memorysetup-temp-allocator-size-preload-manager=262144"
    "memorysetup-temp-allocator-size-nav-mesh-worker=65536"
    "memorysetup-temp-allocator-size-audio-worker=65536"
    "memorysetup-temp-allocator-size-cloud-worker=32768"
    "memorysetup-temp-allocator-size-gfx=262144"
Connecting with port 8999

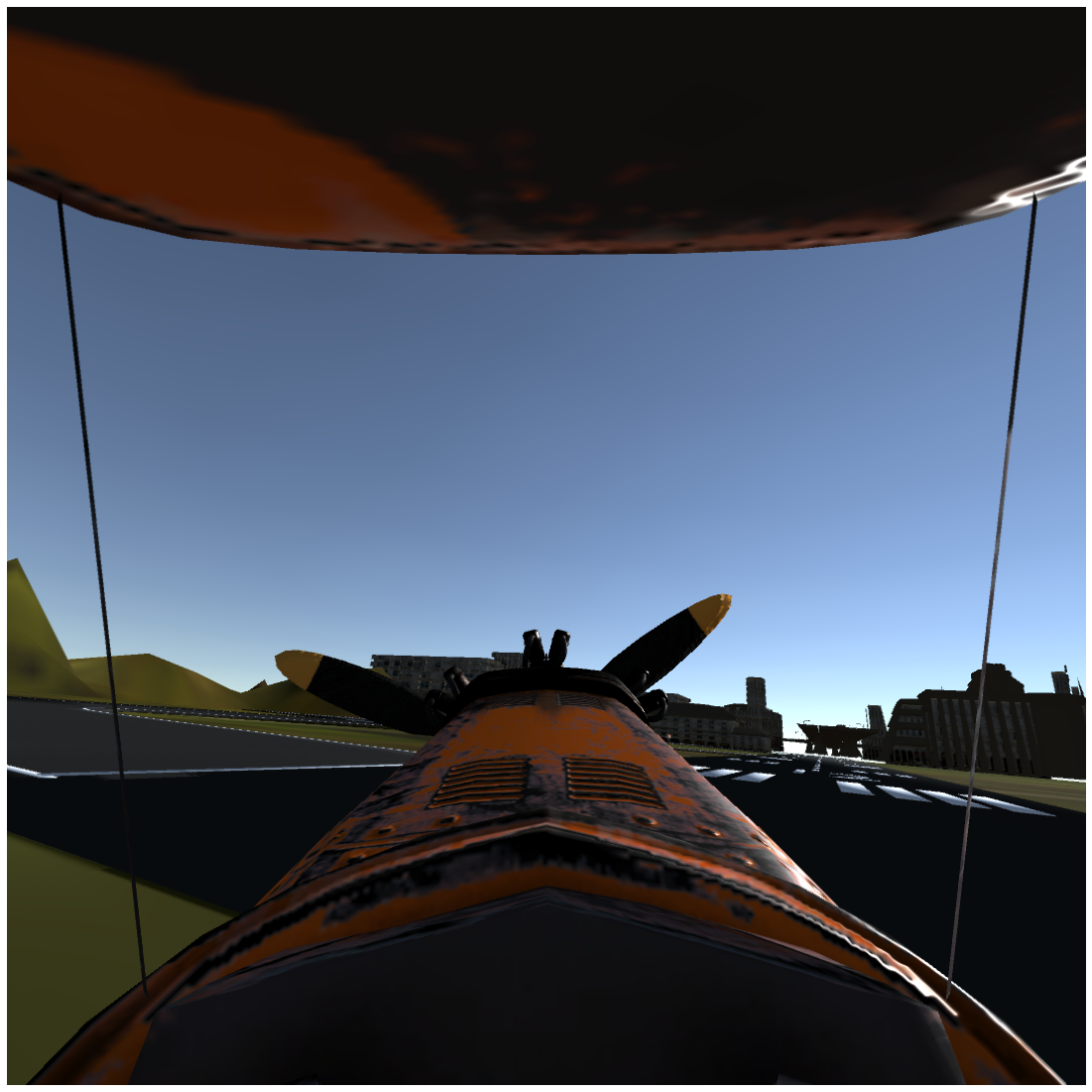

Abundant sun light

TOD_output = env.set_TOD(IsActive=1, Minute=1, Hour=13,SunLatitude=90.933347, SunLongitude=90)
output = env.set_camera(ActiveCamera=1, IsCapture=True,CaptureCamera=1,CaptureType=0,CaptureHeight=1080,CaptureWidth=1080,IsOutput=True)
image = output['ScreenCapture']
if image != "":
    im = Image.open(BytesIO(base64.b64decode(image)))
#     im.show()
    plt.figure(figsize = (20,20))
    imshow(np.asarray(im))
    plt.axis('off')

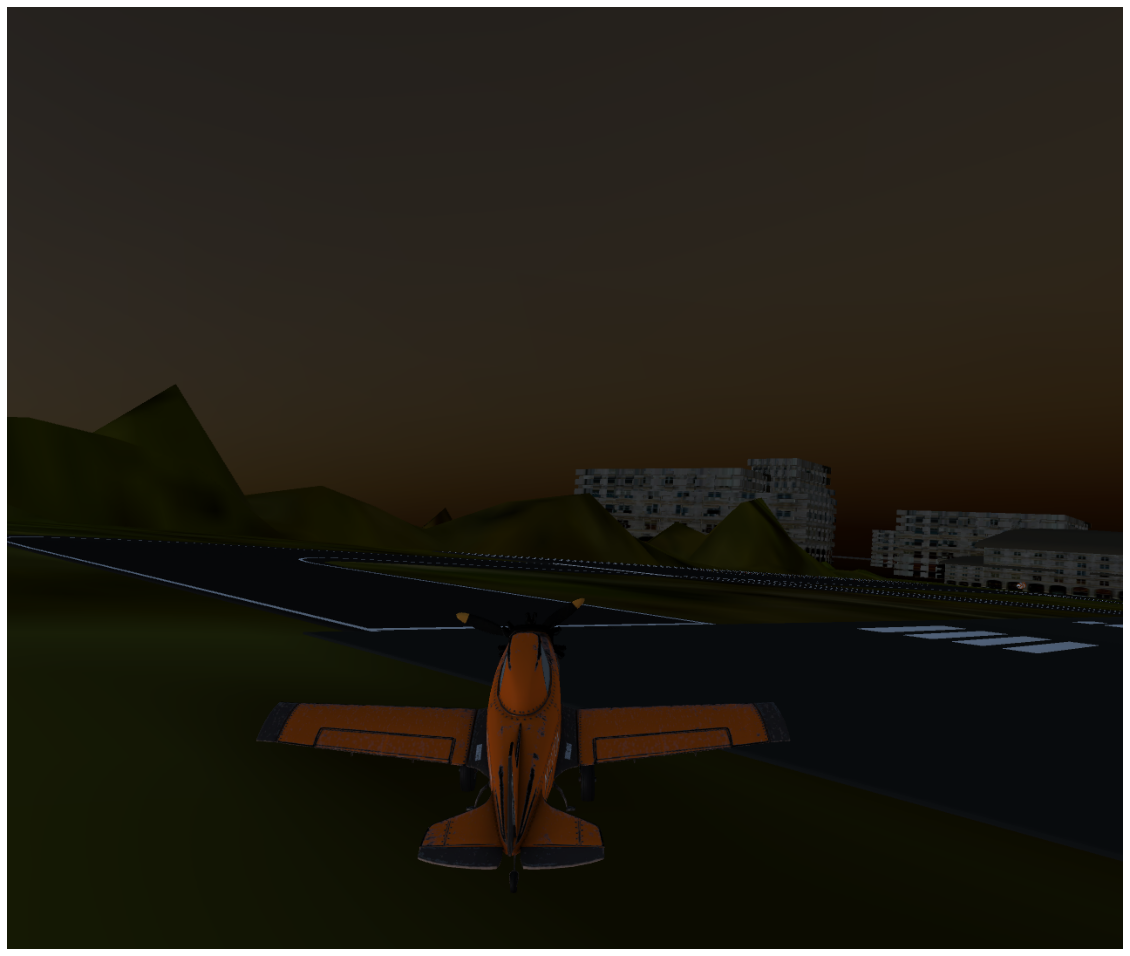

Sunset light

TOD_output = env.set_TOD(IsActive=1, Minute=1, Hour=13,SunLatitude=25.933347, SunLongitude=72.712092)
output = env.set_camera(ActiveCamera=1, IsCapture=True,CaptureCamera=1,CaptureType=0,CaptureHeight=1080,CaptureWidth=1280,IsOutput=True)
image = output['ScreenCapture']
if image != "":
    im = Image.open(BytesIO(base64.b64decode(image)))
    # im.show()
    plt.figure(figsize = (20,20))
    imshow(np.asarray(im))
    plt.axis('off')

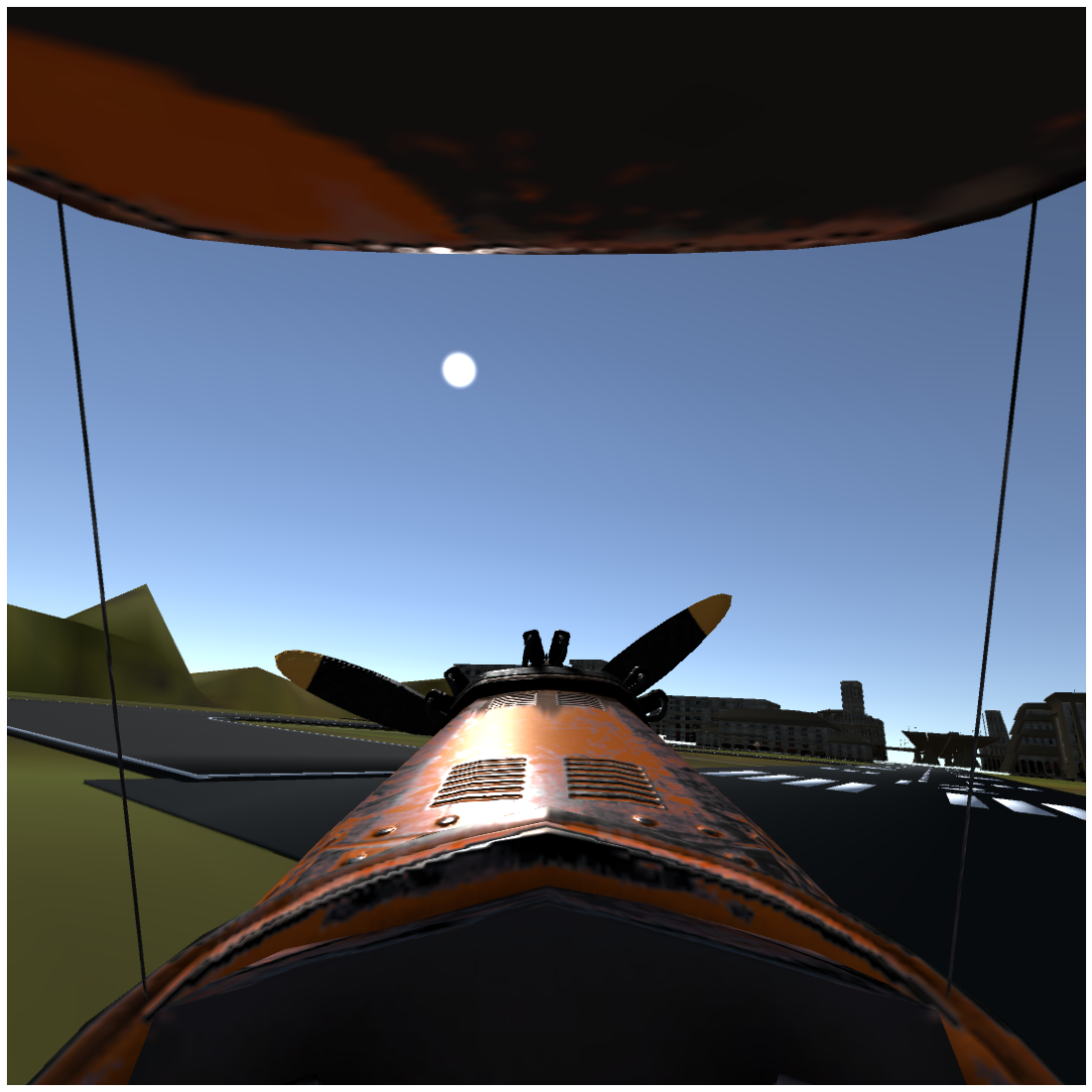

Noon - Sun at vertical angle

TOD_output = env.set_TOD(IsActive=1, Minute=1, Hour=1,SunLatitude=-481.9, SunLongitude=-1517)
output = env.set_camera(ActiveCamera=0, IsCapture=True,CaptureCamera=0,CaptureType=0,CaptureHeight=1080,CaptureWidth=1280,IsOutput=True)
image = output['ScreenCapture']
if image != "":
    im = Image.open(BytesIO(base64.b64decode(image)))
    # im.show()
    plt.figure(figsize = (20,20))
    imshow(np.asarray(im))
    plt.axis('off')

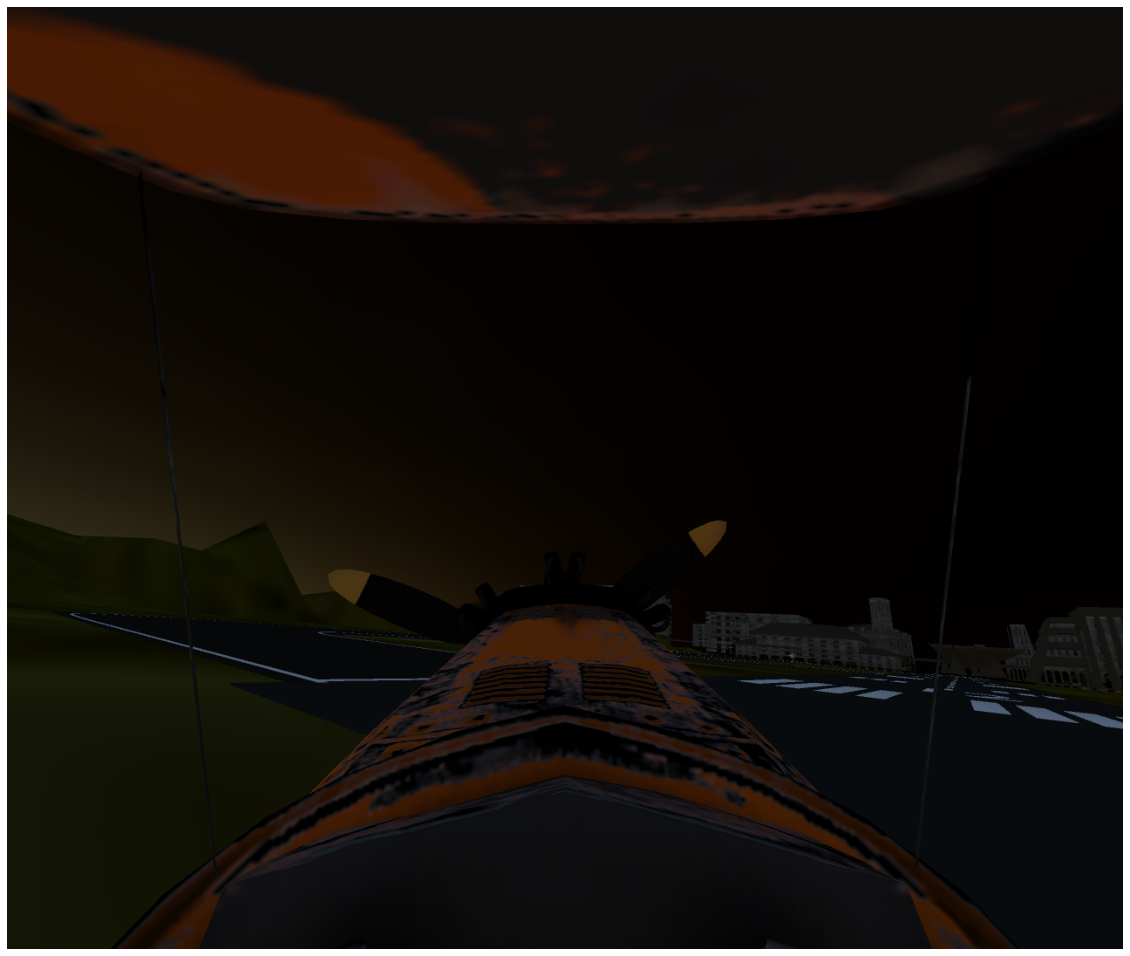

Night

TOD_output = env.set_TOD(IsActive=1, Minute=59, Hour=20,SunLatitude=-500, SunLongitude=-2939.9)
output = env.set_camera(ActiveCamera=1, IsCapture=True,CaptureCamera=1,CaptureType=0,CaptureHeight=1080,CaptureWidth=1280,IsOutput=True)
image = output['ScreenCapture']
if image != "":
    im = Image.open(BytesIO(base64.b64decode(image)))
    # im.show()
    plt.figure(figsize = (20,20))
    imshow(np.asarray(im))
    plt.axis('off')

TOD_output = env.set_TOD(IsActive=1, Minute=1, Hour=1,SunLatitude=-2391, SunLongitude=-500)
output = env.set_camera(ActiveCamera=1, IsCapture=True,CaptureCamera=1,CaptureType=0,CaptureHeight=1080,CaptureWidth=1280,IsOutput=True)
image = output['ScreenCapture']
if image != "":
    im = Image.open(BytesIO(base64.b64decode(image)))
    # im.show()
    plt.figure(figsize = (20,20))
    imshow(np.asarray(im))
    plt.axis('off')
